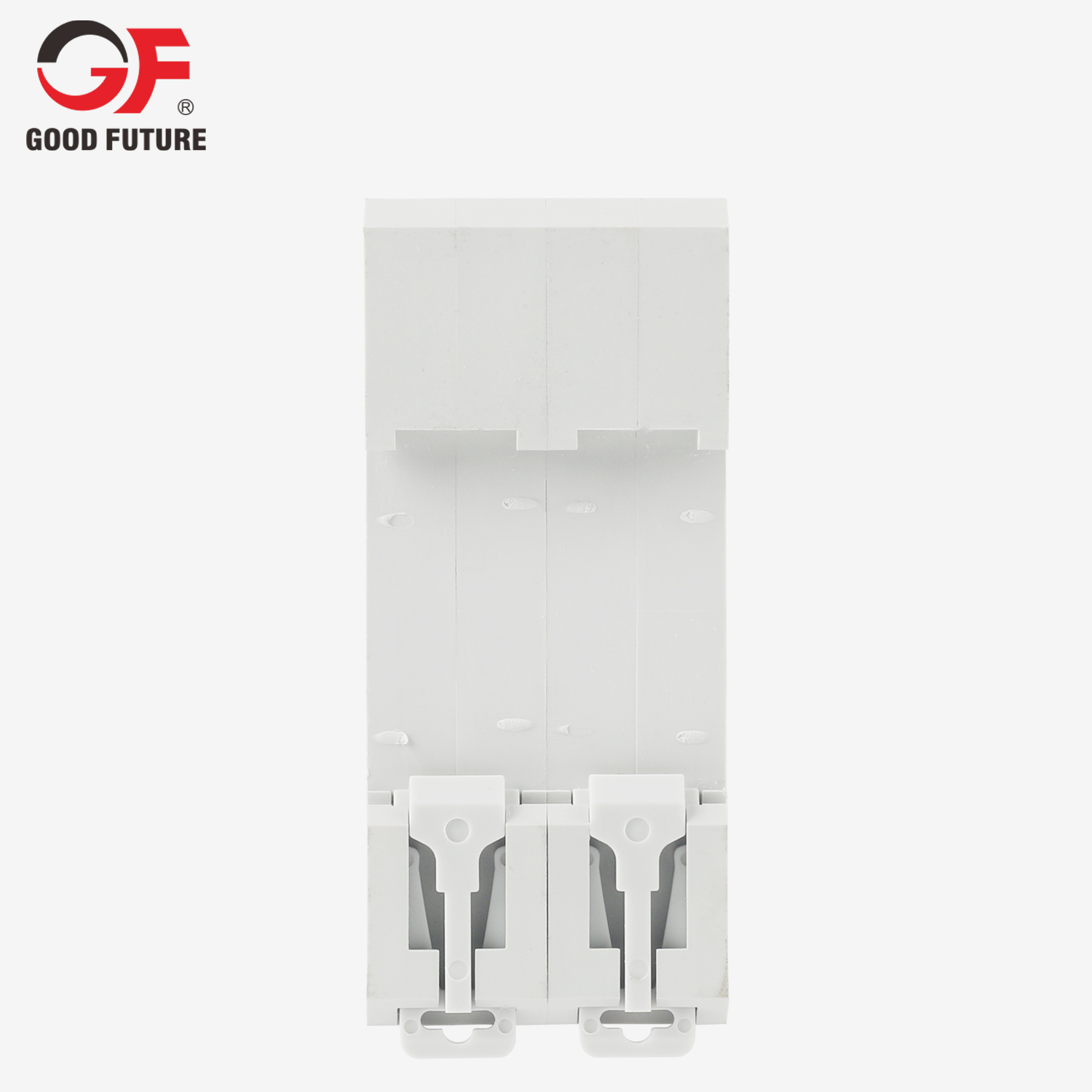

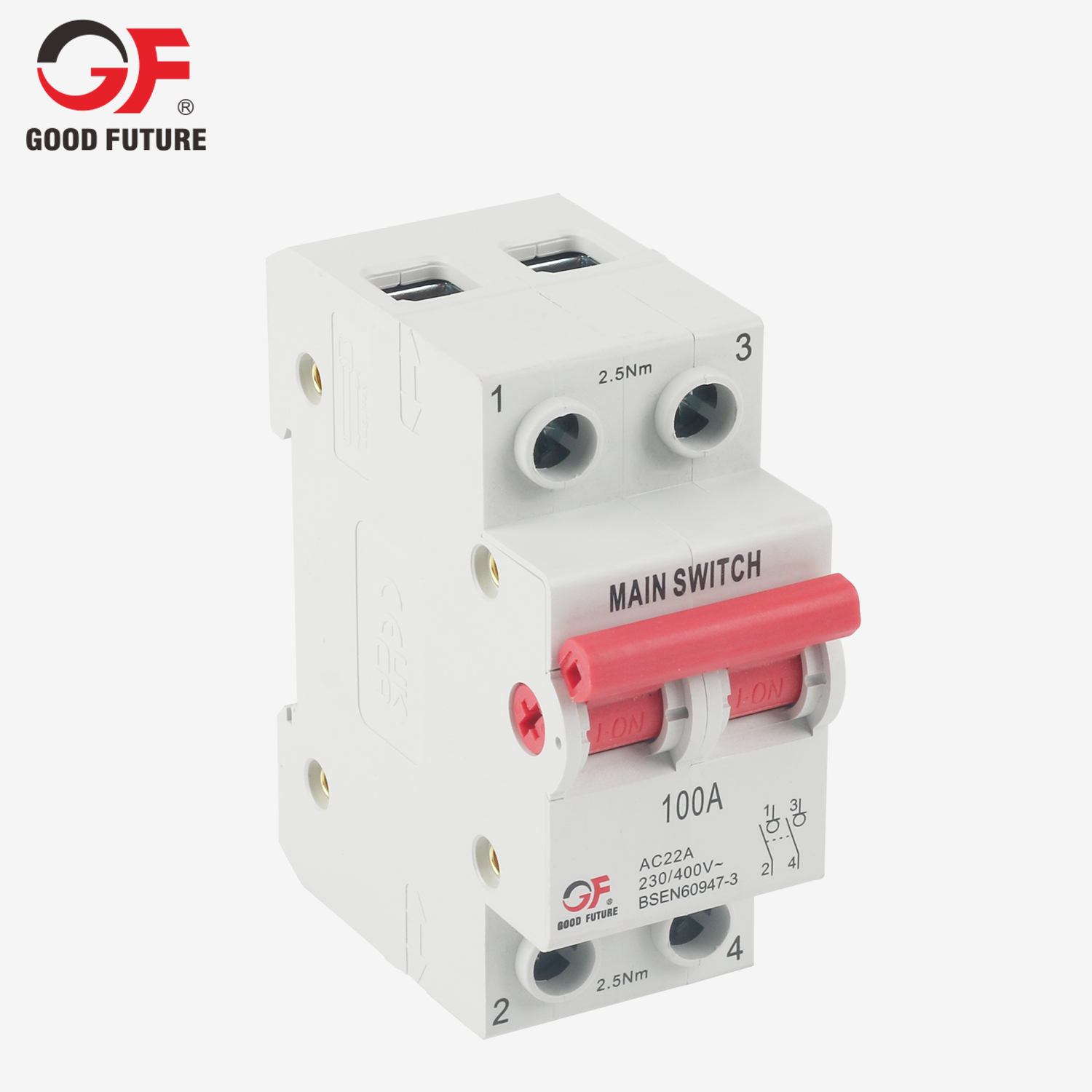

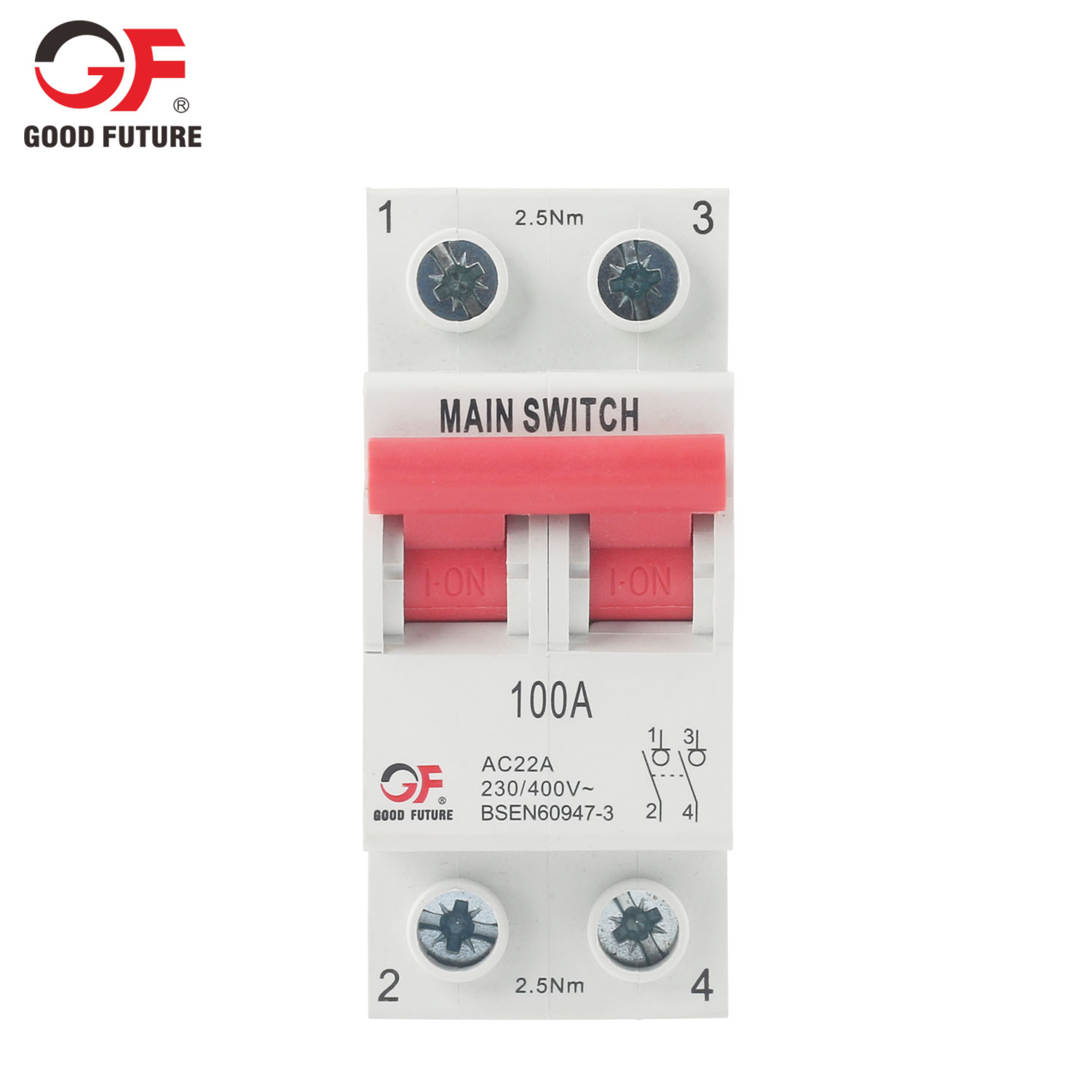

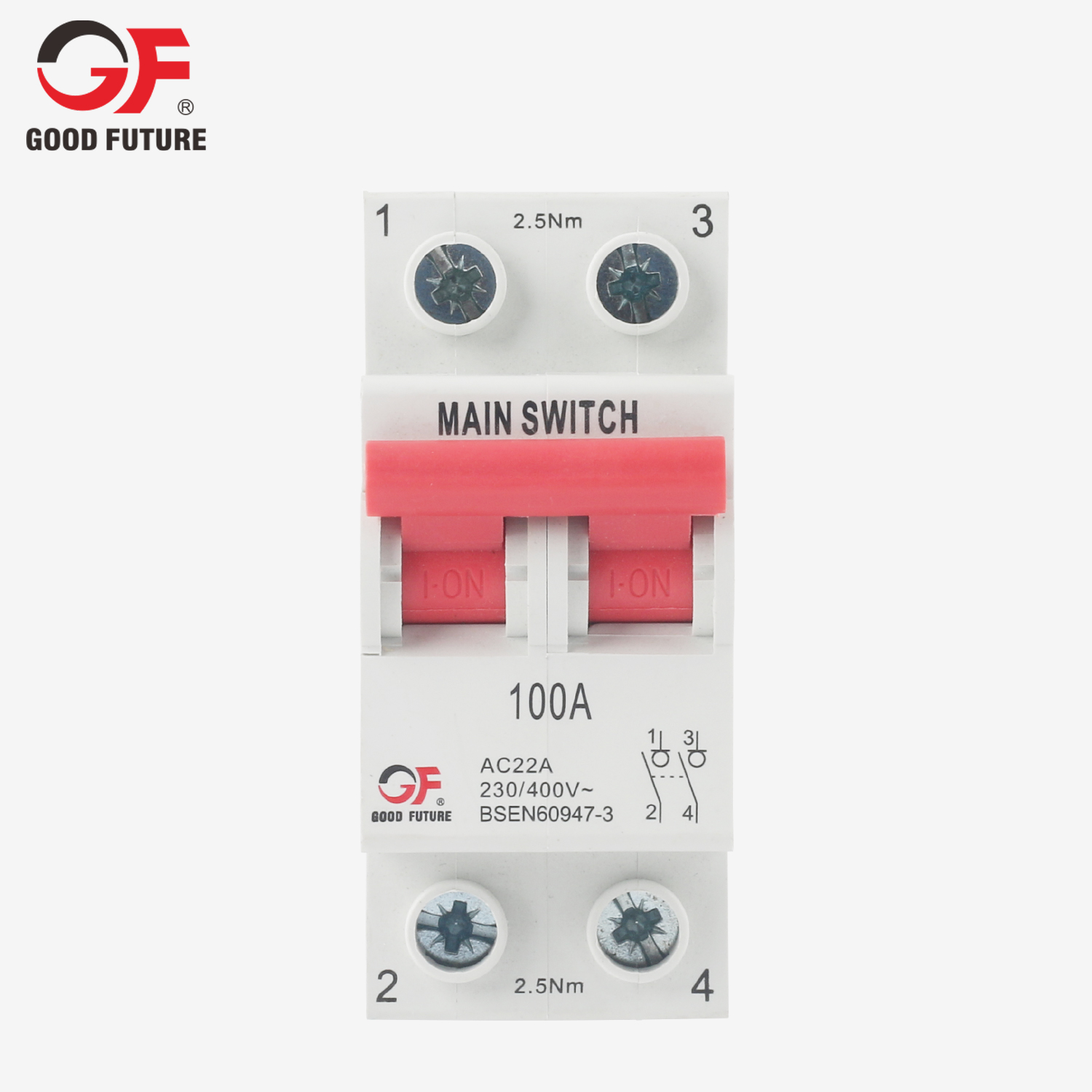

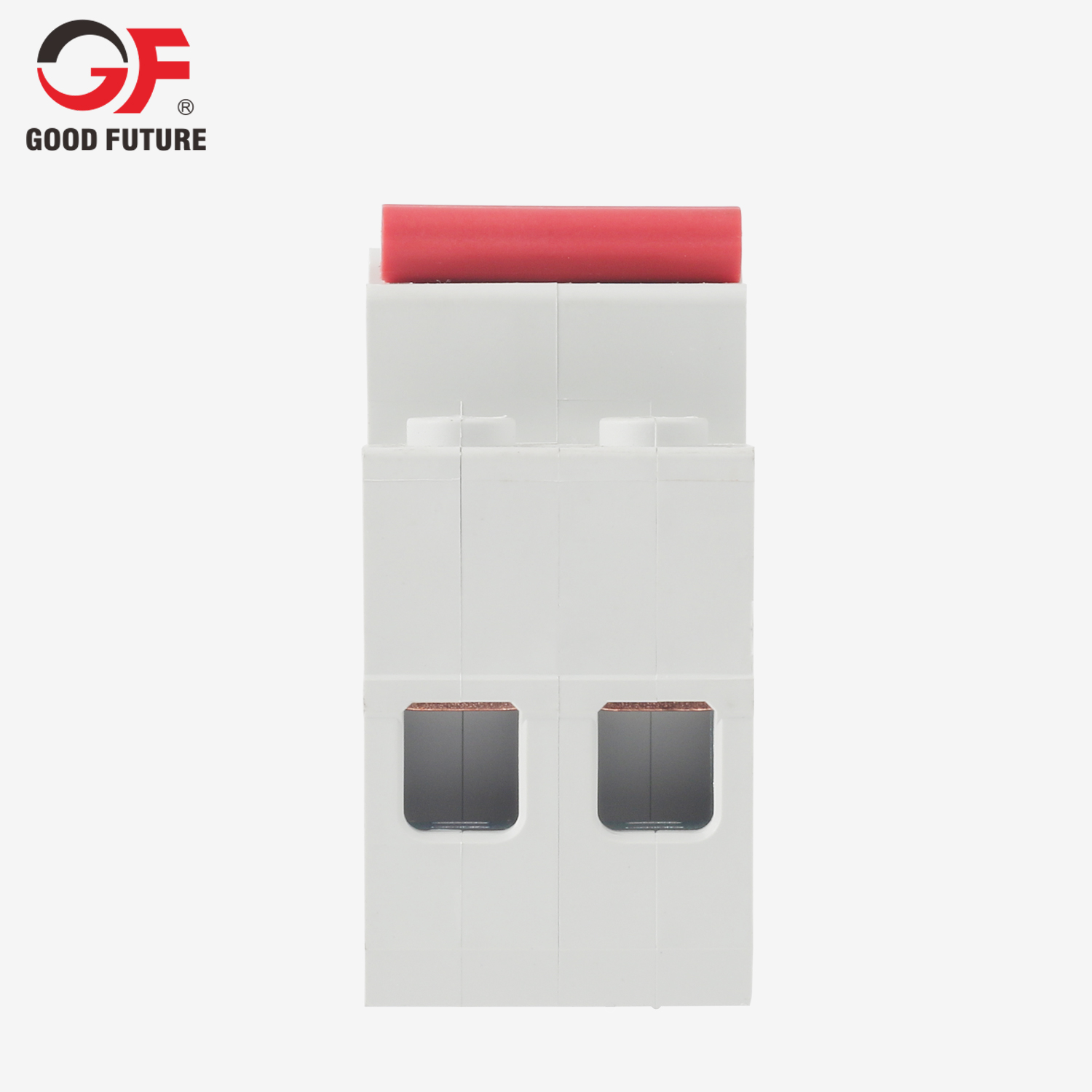

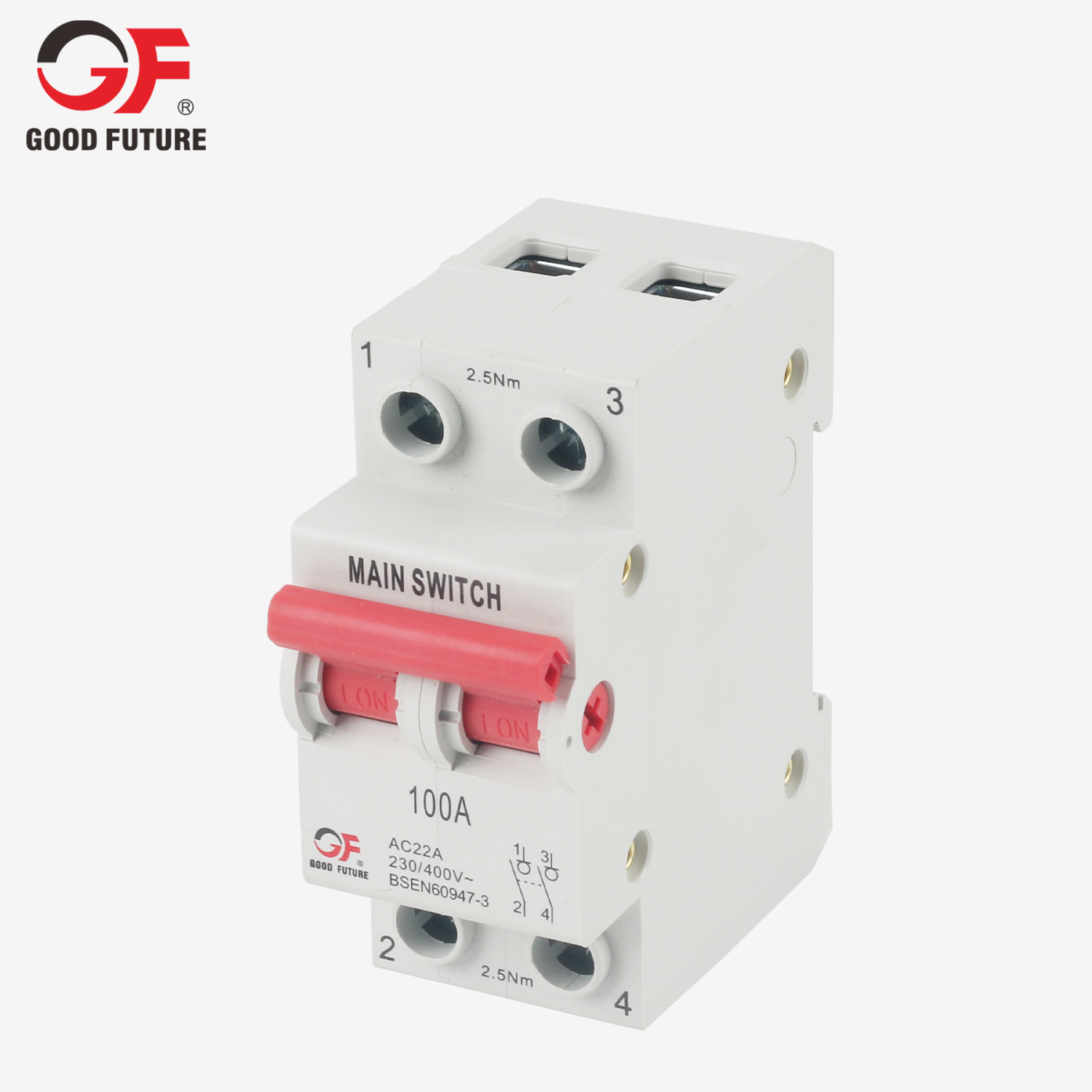

100A DP Main Switch
| Operating category | AC-22A |
| For cables ø | 1-35mm2 |
| Frequency | 50Hz |
| Poles | 2 |
| Rated operating voltage | 230V |
| Rated current | 100A |
| Execution | DIN RAIL MOUNTING |
| Net weight | 0.18KG |
| Min order quantity | 1 |
| EAN Code | 5026992048610 |
| Gross Weight | 0.19KG |
| Dimensions | 81.5x36x75.5 |
BS EN 60947-3
EN 60947-1:2007
